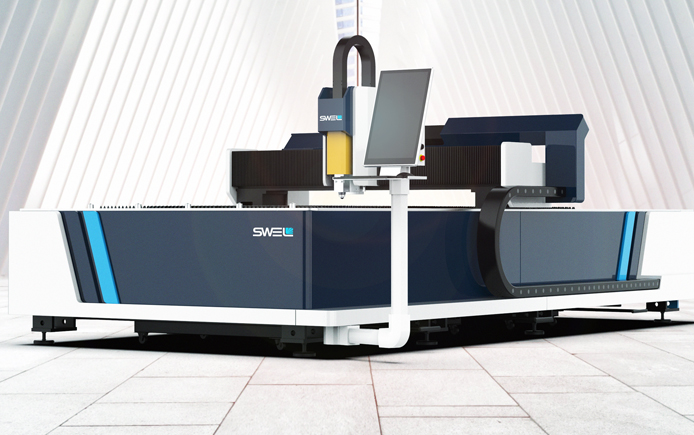

Large Format Super Power Metal Laser Cutting Machine

    It has professional mechanical design, novel appearance and multiplepatented technologies. It has high processing refinement, fast speed,small slits, smooth cross section..

Product Description

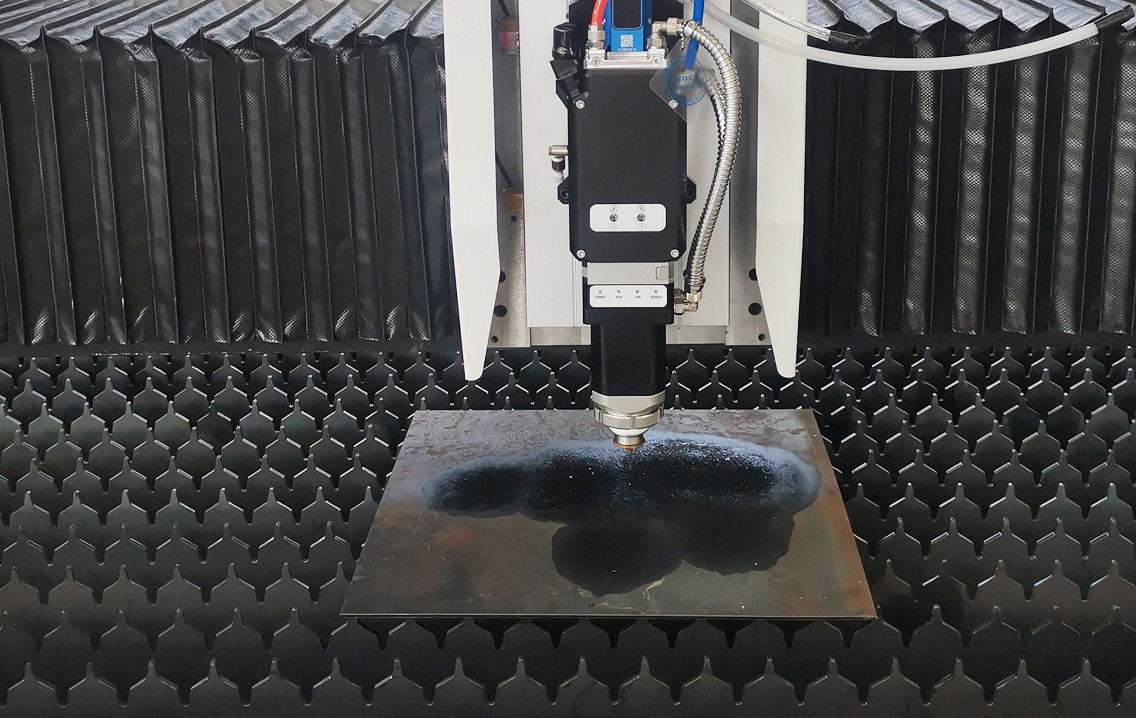

Extreme Speed, Performance Leap



Single-platform open structure

Capable of multi-directional loading

High stability, fast speed

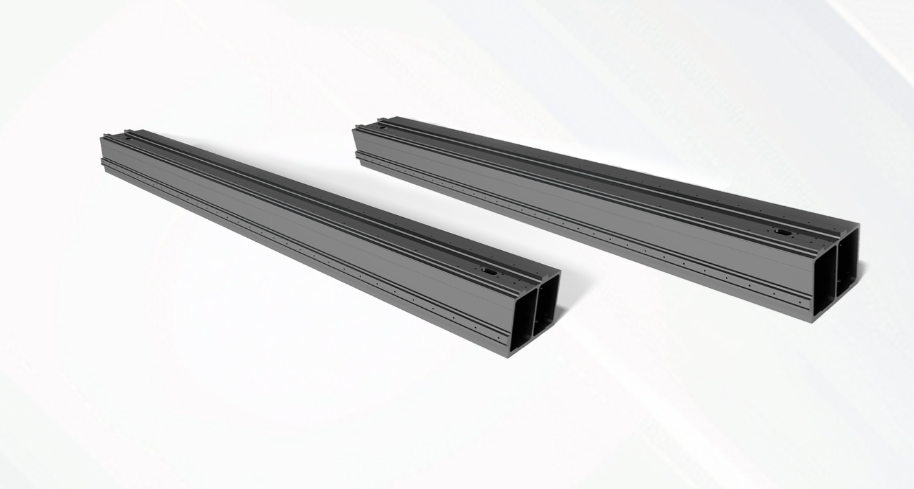

Brand New Double-beam Bed Structure


Designed for high-efficiency processing needs

Self-developed stopper plug-in double-beam design

No deformation in long-term cutting, ensuring stable

equipment operation

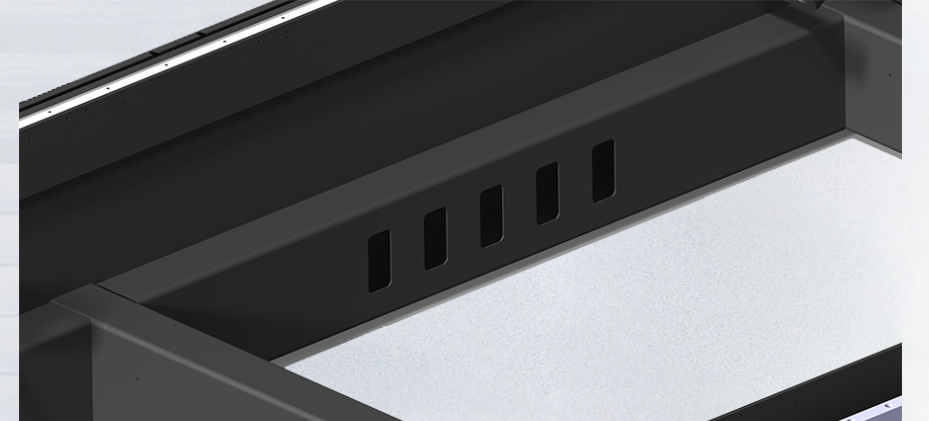

Modular Worktable Design


Workbench assembly modular design

Stable worktable structure, strong load-bearing capacity

Easy to disassemble, replace and maintain

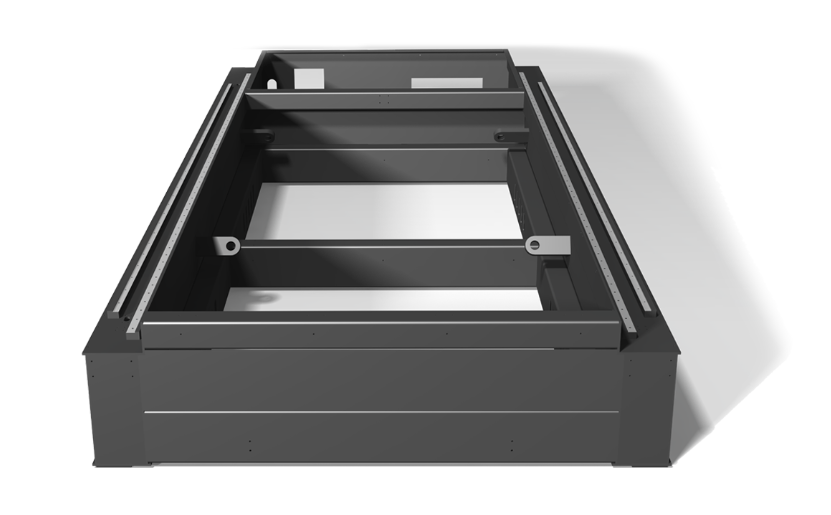

Bed advantages


The bed is more stable,

and the larger format increases the cutting range

while maintaining the same accuracy



Technical Parameter

Product ModelLY4020ALY6025ALY8025A
Working area4030*2030mm6030*2530mm8030*2530mm
The Y-axis stroke4030mm6030mm8030mm
X-axis stroke2030mm2530mm2530mm
Z-axis stroke200mm200mm200mm
X-axis/Y-axis linkage speed100m/min
X-axis/Y-axis acceleration1.5G
X-axis/Y-axis repeated positioning accuracy±0.02mm±0.02mm±0.02mm
Laser power3KW-6KW3KW-12KW6KW-20KW

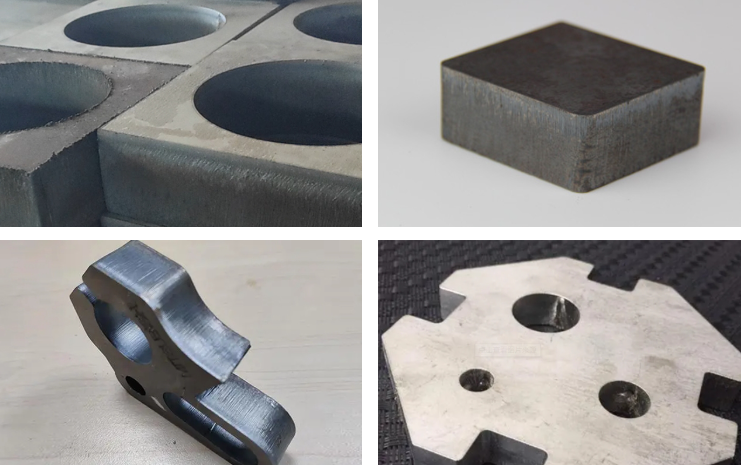

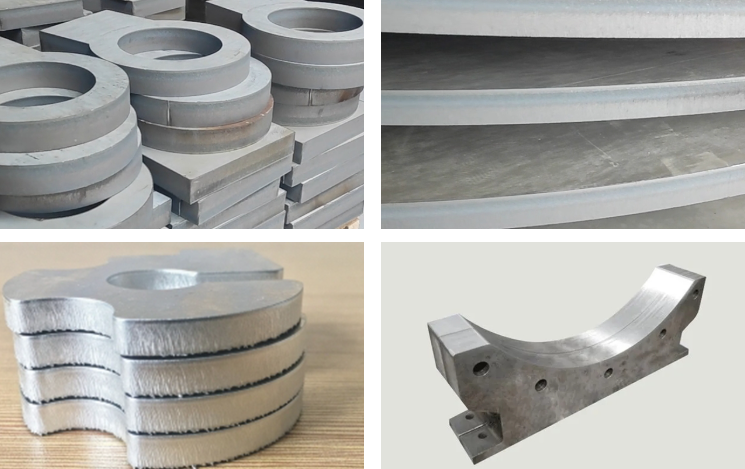

Cutting Sample
