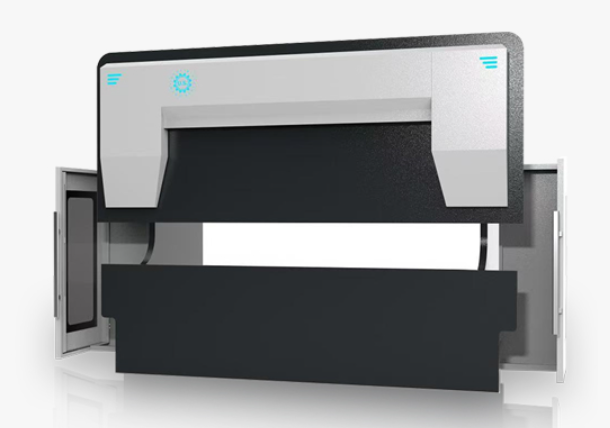

Product Description
Main performance and features
The frame, consisting of an oil tank, support, workbench, wall panels, and slider, undergoes stress relief for stability. Precision machining on a floor-standing boring and milling machine ensures tolerance alignment of all critical mounting surfaces.
Equipped with Bosch Rexroth proportional valves and DELEM CNC systems, the machine ensures high reliability and precision. Grating rulers detect slider positions (Y1, Y2) to control parallelism, even under partial load.
The operator interface supports Chinese and English, enabling force, position, and speed adjustments through automatic calculations.
High-precision guide and measurement systems, along with hydraulic balancing, support full or partial load operations.
A quick-clamp deflection compensation mechanism ensures accuracy during operation.
Nickel-phosphorus plating on cylinder piston rods enhances lubrication and durability.

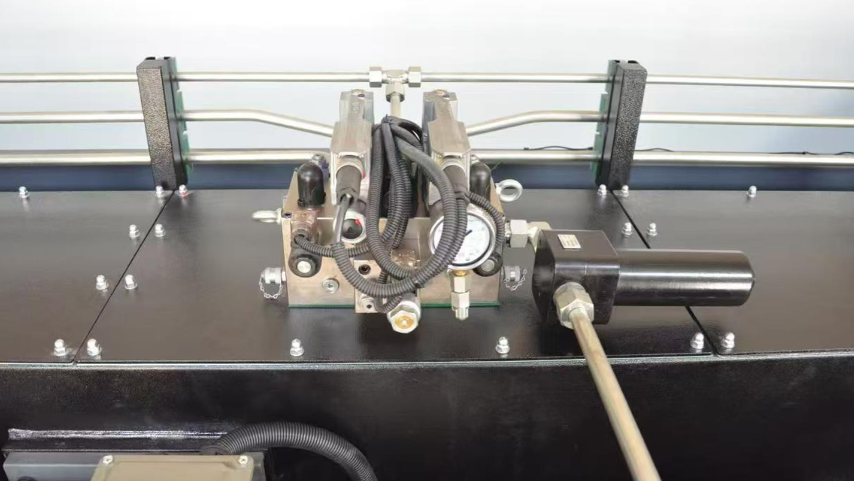

Hydraulic system
Proportional pressure valves are imported from Germany.
Optimized configuration according to customer requirements to ensure the best working condition of the machine tool.
The hydraulic system has stable performance and low heat generation during operation.
Modular design, customers can choose according to their needs, and can easily realize functions such as deflection compensation and hydraulic clamps.
The hydraulic system is specially developed by Bosch Rexroth for CNC bending machines.
CNC system
Computer: DA53T by DELEM (Netherlands)
The integrated DA-53T CNC system supports both torsion bar and electro-hydraulic synchronized bending machines. Its 4-axis control panel design allows for direct installation on the cabinet or in a suspended console.
With a user-friendly interface and TFT true-color LCD, the DA-53T offers all essential bending machine control functions. Its unique "shortcut key" system enables fast and simple programming.
Standard features include Y-axis angle programming, table deflection compensation, and pressure control. Equipped with a USB interface, it ensures quick and easy backup of products and molds, delivering a stable and reliable solution with cutting-edge technology.
One-page parameter programming, internal storage capacity 1 GB
10.1" LCD true color TFT display
Workbench deflection compensation control
Mold library, flanging bending programming - large arc programming
Optional second axis control for back gauge
USB interface
Advanced Y-axis control algorithm, can control both closed loop and open loop valves
Back gauge can choose servo control, frequency conversion control, AC control
Panel structure
Can realize dual-machine linkage
Technical Parameter
| Name | Parameters | Unit |
|---|---|---|
| Nominal pressure | 1100 | KN |
| Workbench length | 3200 | mm |
| Distance between columns | 2700 | mm |
| Slider stroke | 200 | mm |
| Maximum opening height of the slider | 500 | mm |
| Throat Depth | 400 | mm |
| Number of CNC axes | 4+1 | axis(Y1、Y2、X、R+V) |
| Main motor power | 7.5 | Kw |
| Cylinder quantity | 2 | piece |
| Machine weight | About 7.8 | T |
| Note: Y1 and Y2 axes - the grating rulers (Y1 and Y2) on both sides of the slider control the CNC axes of the oil cylinders on both sides. X axis - controls the forward and backward movement of the back gauge R axis - controls the up and down movement of the back gauge V axis - worktable deflection compensation mechanism (electric compensation) | ||
Main configuration list
| Name | Manufacturer |
|---|---|
| CNC system | Netherlands DELEM- DA53T |
| Main system pressure control valve block | German Bosch Rexroth |
| Synchronous control valve block | German Bosch Rexroth |
| High pressure oil filter | German HYDAC |
| Grating ruler | German ELGO |
| Main sealing components in the cylinder | Japan NOK |
| Travel switch, button | Schneider |
| Intermediate relay, AC contactor | Schneider |
| Internal gear pump | SUNNY |
| Ball screw, rolling guide | Taiwan HIWIN or TBI |
| Servo Motor | INOVANCE Servo |
| Upper die | Upper die: 42CrMo material, overall quenching |
| Lower die | Double center lower die 42CrMo material overall quenching |
| Compensation table | Huangshi Dazhong automatic mechanical |
| Clamping device | Push-type quick clamp |
| Baffle plate | Equipped with 4 stop fingers and double linear guide rails |
| Front support | Rotatable and lifting double support |
