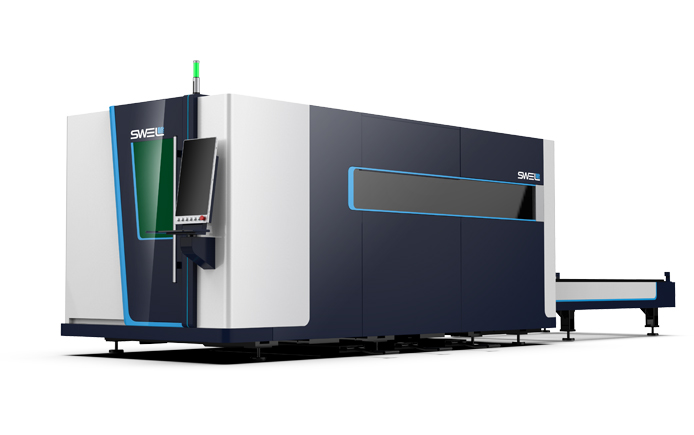

All Cover Exchange Platform laser Cutting Machine
- This product adopts a new closed design and quick exchange of dualworkbenches. It can process and unload materials at the same time,with high speed, small cutting gap..
Product Description

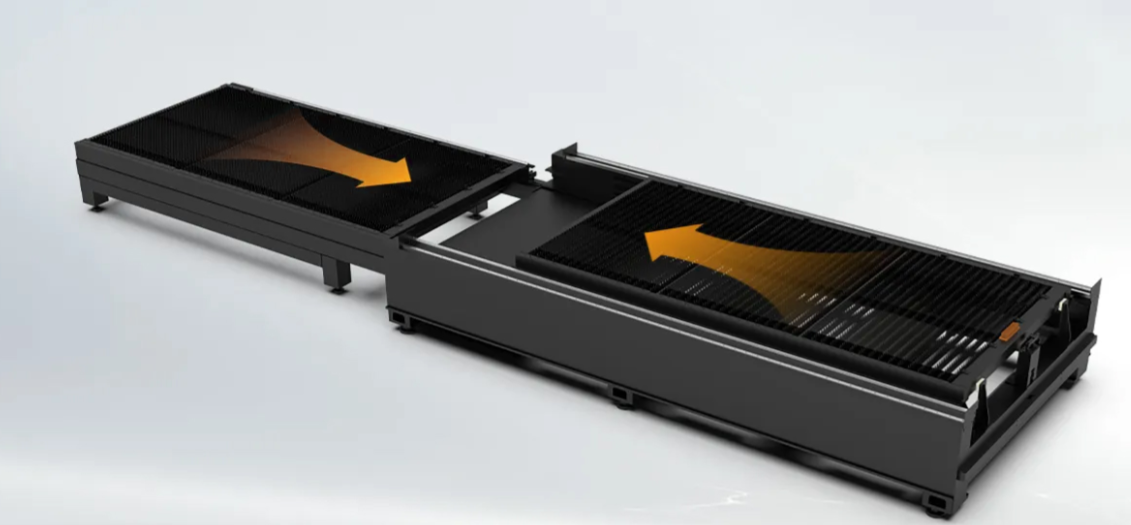

Quick exchange of dual workbenches
It can process and unload materials at the same time, with high speed, small cutting gap, smooth cross-section, easy operation and low energy consumption.
Swift and Efficient Cutting
Intelligent platform exchange, enabling rapid exchange
Saves loading and unloading time, improves production efficiency

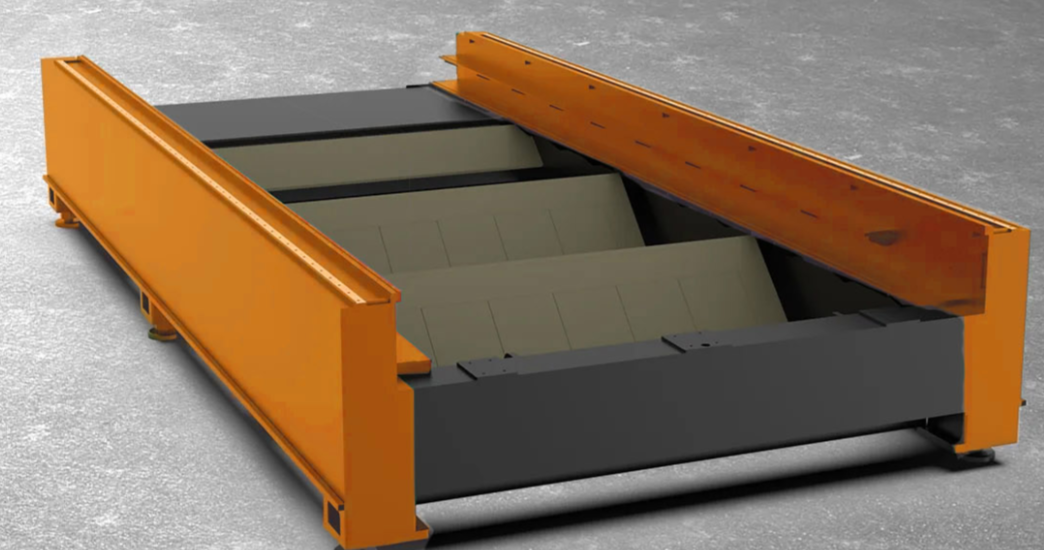

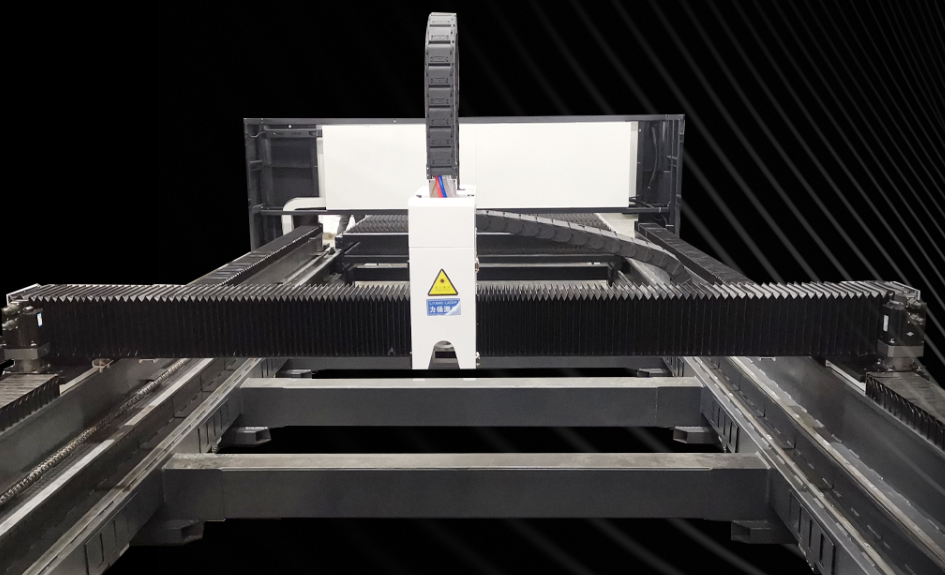

Brand New Double-beam Bed Structure
Designed for high-efficiency processing needs
Self-developed stopper plug-in dual-beam design
Long-term cutting without deformation, ensuring stable equipment operation

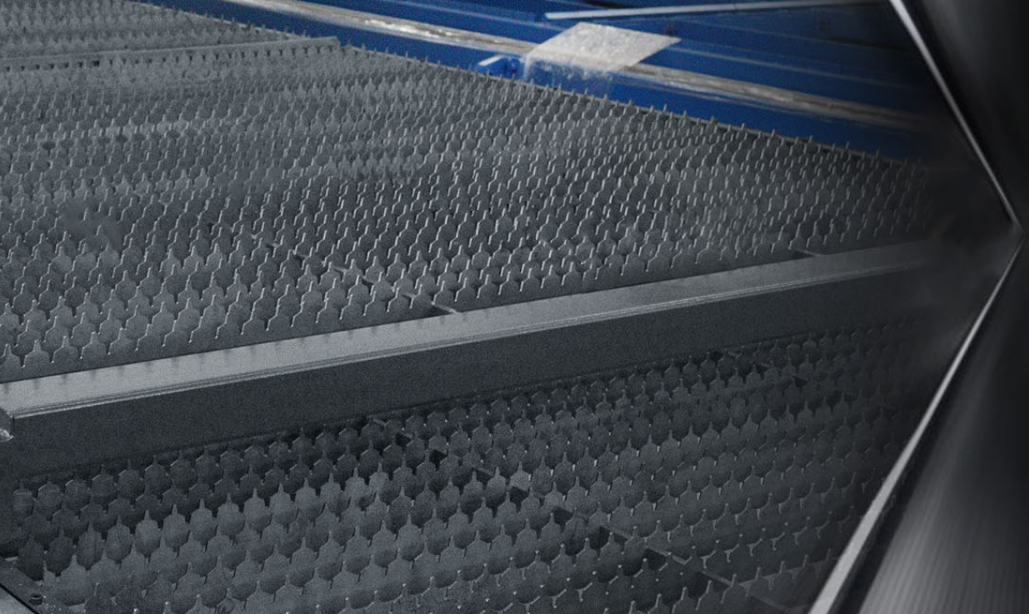

Advanced smoke exhaust system
The new smoke exhaust method of segmented smoke exhaust makes the smoke exhaust effect better and more environmentally friendly.
Fully Enclosed Design
With beautiful appearance, good smoke exhaust effect, hygiene and high safety Complies with European CE and US FDA safety standards.
Technical Parameter
| Product Model | LY3015D | LY4020D | LY6025D | LY8025D |
|---|---|---|---|---|
| Working area | 3030*1530mm | 4030*2030mm | 6030*2530mm | 8030*2530mm |
| The Y-axis stroke | 3030mm | 4030mm | 6030mm | 8030mm |
| X-axis stroke | 1530mm | 2030mm | 2530mm | 2530mm |
| Z-axis stroke | 300mm | 300mm | 350mm | 350mm |
| X-axis/Y-axis linkage speed | 120m/min | |||
| X-axis/Y-axis acceleration | 1.5G | |||
| X-axis/Y-axis positioning accuracy | ±0.03mm | |||
| X-axis/Y-axis repeated positioning accuracy | ±0.03mm | |||
| Laser power | 3KW-6KW | 3KW-6KW | 3KW-20KW | 3KW-20KW |

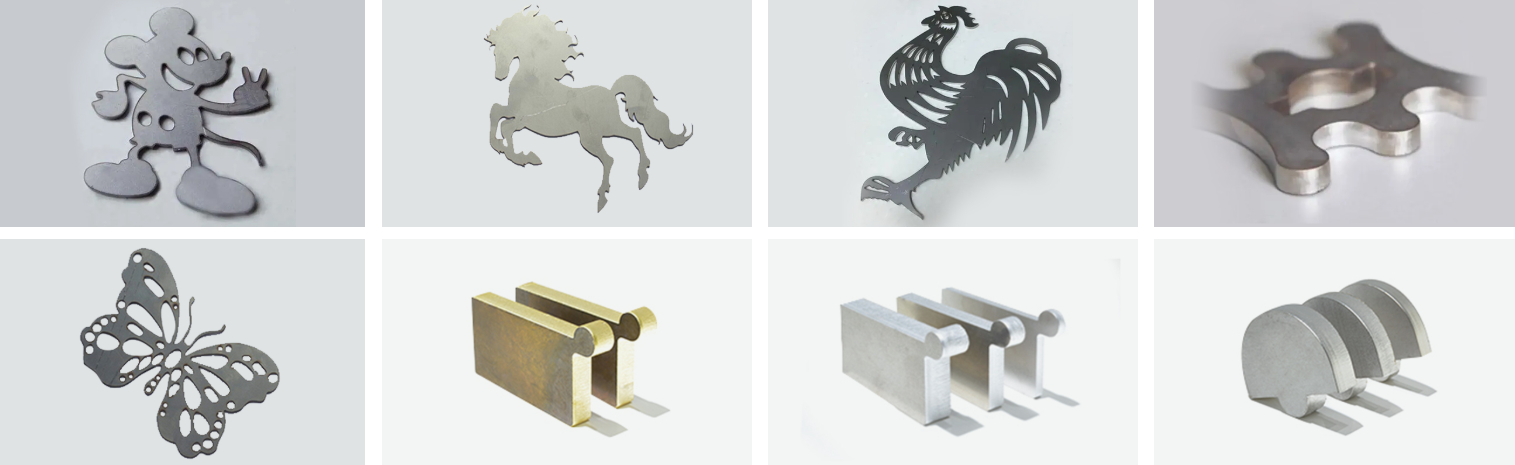

Cutting Sample
