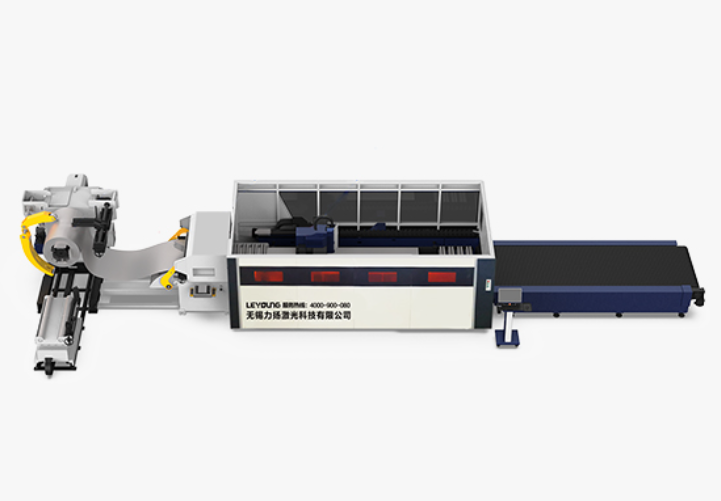

Coil Material Laser Cutting Production Line
- Coil material laser cutting production line, fast speed, high precision.rolling, leveling, cutting.three-in-one laser cutting machine, smoothsection, easy operation, low energy...
Product Description
Product Description and Details
Coil material laser cutting production line, fast speed, high precision, rolling, leveling, cutting, three-in-one laser cutting machine, smooth section, easy operation, low energy consumption, suitable for large-scale continuous processing, highlighting the competitive advantage of cutting.
Technical Parameter
| Product Model | LY4020D | LY6025D |
|---|---|---|
| Working area | 4030*2030mm | 6030*2530mm |
| The Y-axis stroke | 4030mm | 6030mm |
| X-axis stroke | 2030mm | 2530mm |
| Z-stroke | 300mm | 350mm |
| X-axis/Y-axis linkage speed | 120m/min | |
| X-axis/Y-axis acceleration | 1.5G | |
| X-axis/Y-axis positioning accuracy | ±0.03mm | |
| X-axis/Y-axis repeated positioning accuracy | ±0.03mm | |
| Laser power | 3KW-6KW | 3KW-20KW |

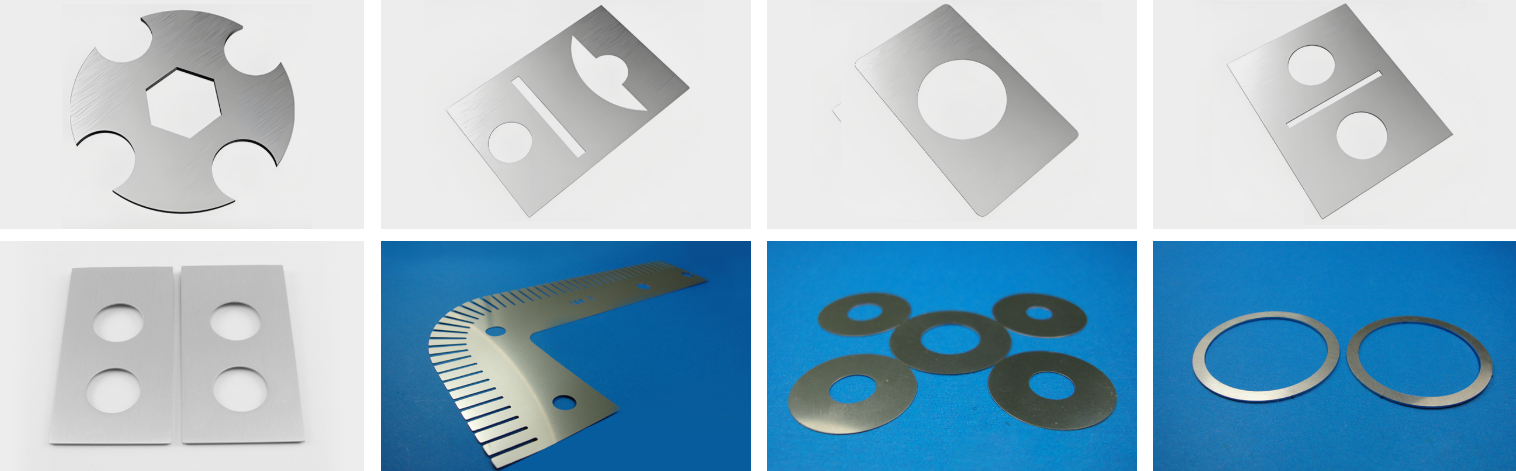

Cutting Sample
