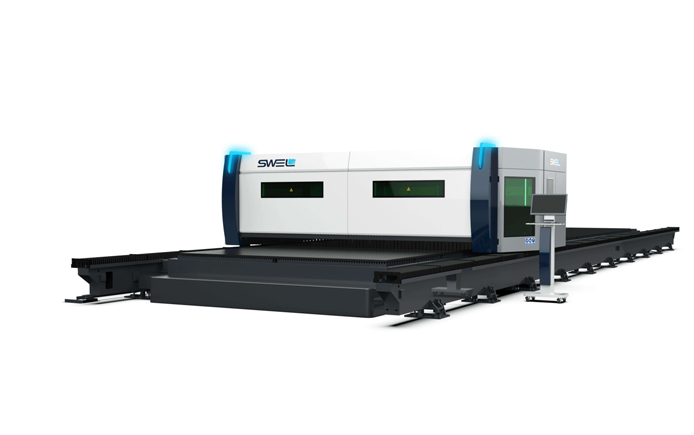

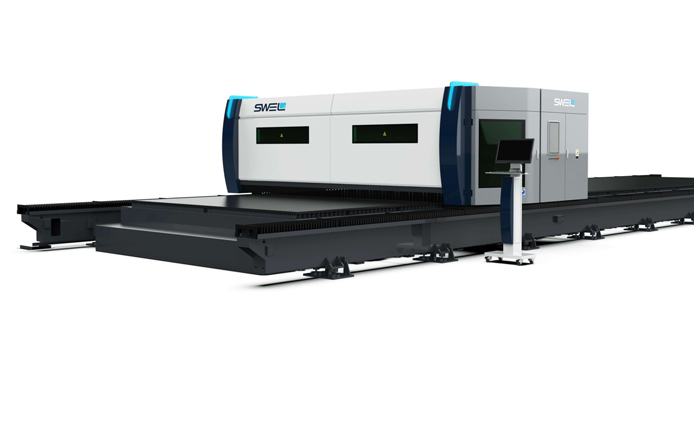

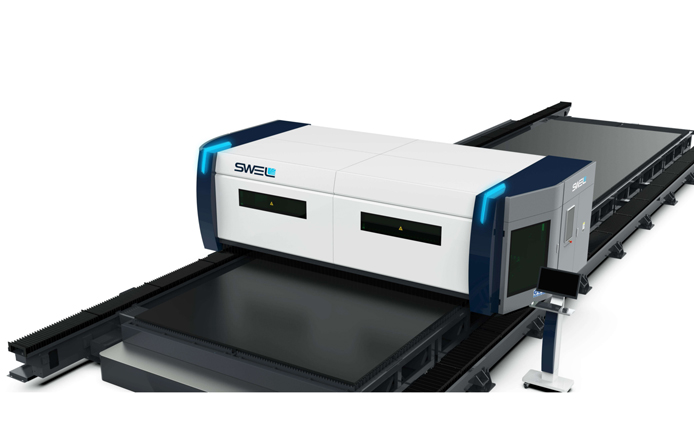

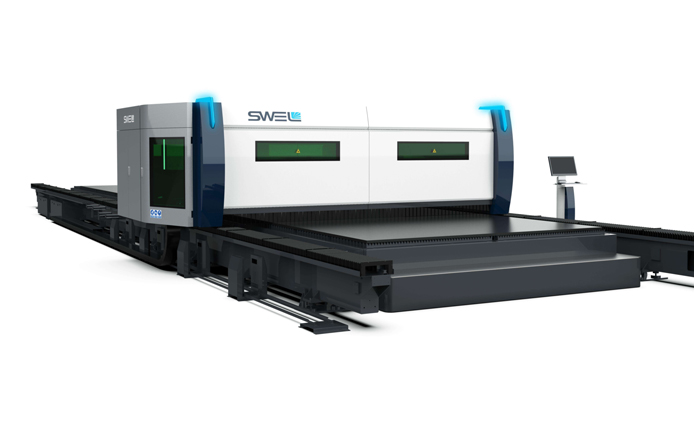

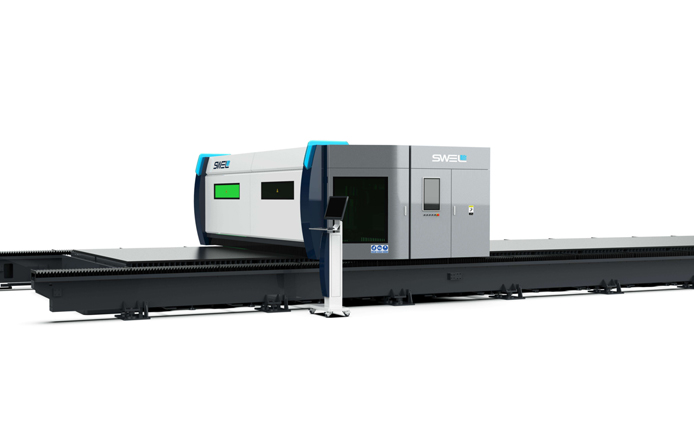

Enclosed Ground Rail Gantry Beam LaserCutting Machine
- The beams are equipped with embedded fans, effectively blowing the smokegenerated during cutting downwards, which is then quickly sucked awaythrough the dust pipes on the machine tool to ensure a clean and safeworking environment.
Product Description
The cutting width is not limited, making it particularly suitable for high-power cutting operations, showcasing excellent adaptability.
The bed is designed in a segmented style, not only enhancing the stability of the structure but also greatly facilitating the transportation process.
The self-adaptive floating beam is equipped, effectively preventing the machine from getting stuck during operation and ensuring a smooth and uninterrupted workflow.
Technical Parameter
| Product Model | LY3015A |
|---|---|
| Working area | 3030*1530mm |
| The Y-axis stroke | 3030mm |
| X-axis stroke | 1530mm |
| Z-axis stroke | 150mm |
| X-axis/Y-axis linkage speed | 100m/min |
| X-axis/Y-axis acceleration | 1.5G |
| X-axis/Y-axis repeated positioning accuracy | ±0.02mm |
| Laser power | 3KW-6KW |

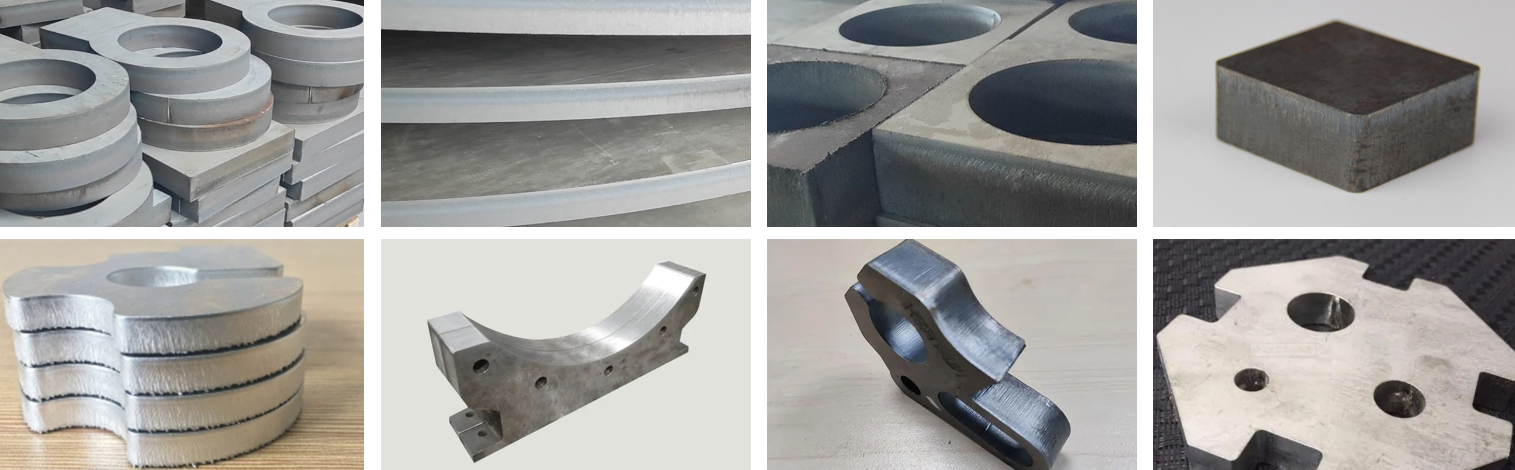

Cutting Sample
