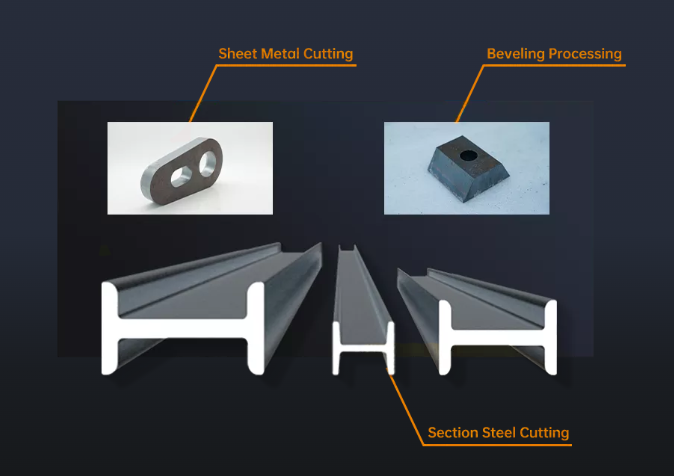

Three-in-one cutting mode:

Sheet Metal Straight Cutting+

Section Steel Straight Cutting+

Beveling Processing

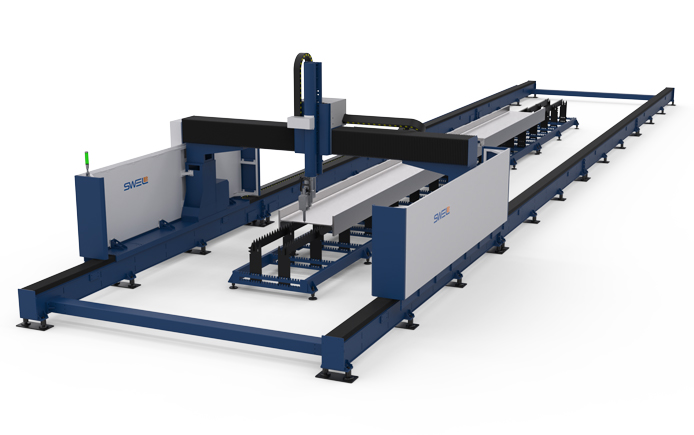

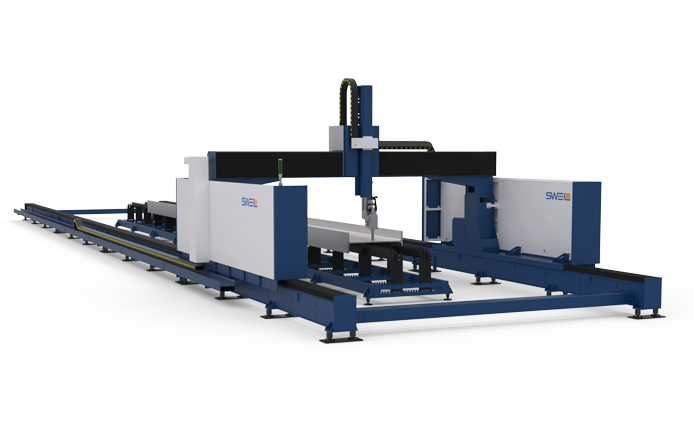

Equipped with multiple cutting modes, PR1500B Series can fully meet the demands of corresponding straight cutting and beveling processing for sheet and section steels.

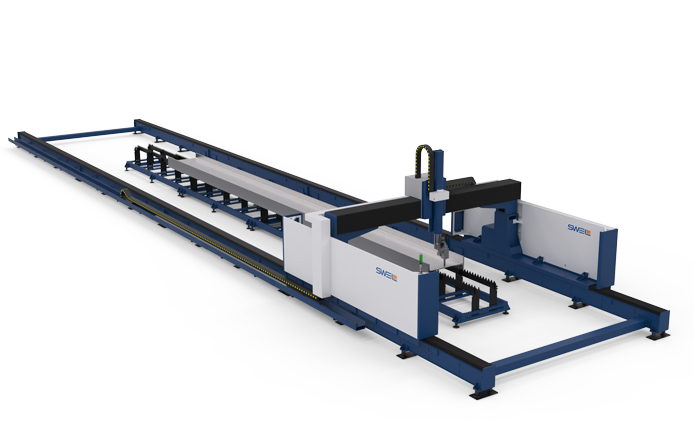

Extra Large-format Design

Adopting independent modular design, single station (14m) and double station (28m) can be selected to meet the cutting requirements of different metal material combinations; The extra wide machine bed allows to be used for the beveling processing of 2.5m wide sheet metal.

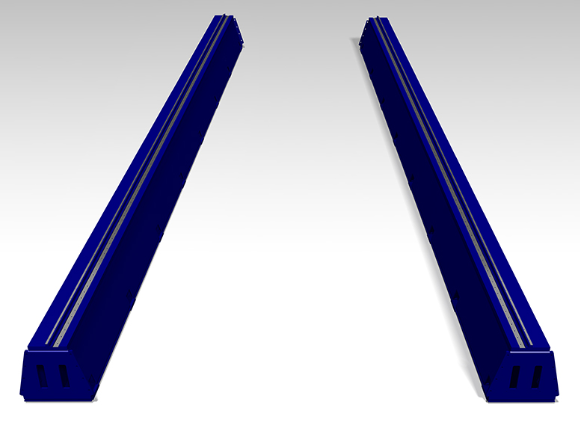

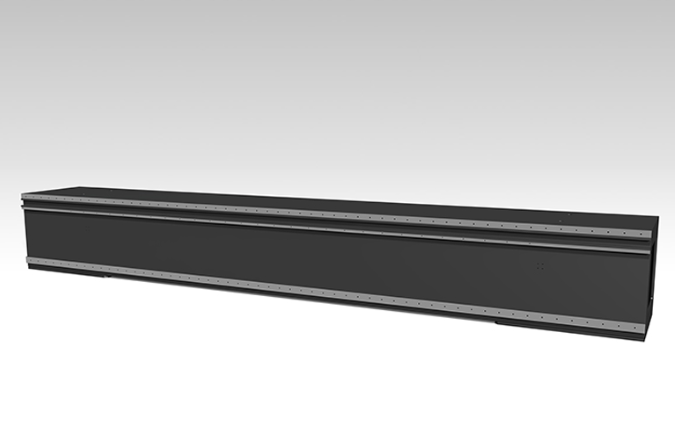

Self-regulating floating crossbeam

Avoids the parallelism of the assembled bed frame being insufficient, causing the crossbeam to get stuck during movement.

Avoids the bed frame deforming due to uneven load distribution, causing the crossbeam to get stuck during movement.

Reduces wear on the guide rail contact end of the bed frame, extending the service life of the equipment and ensuring long-term accuracy.

Characteristic

Compared with the traditional processing method, it can save more processes;
Multiple protection, so that the operation of the equipment more secure;

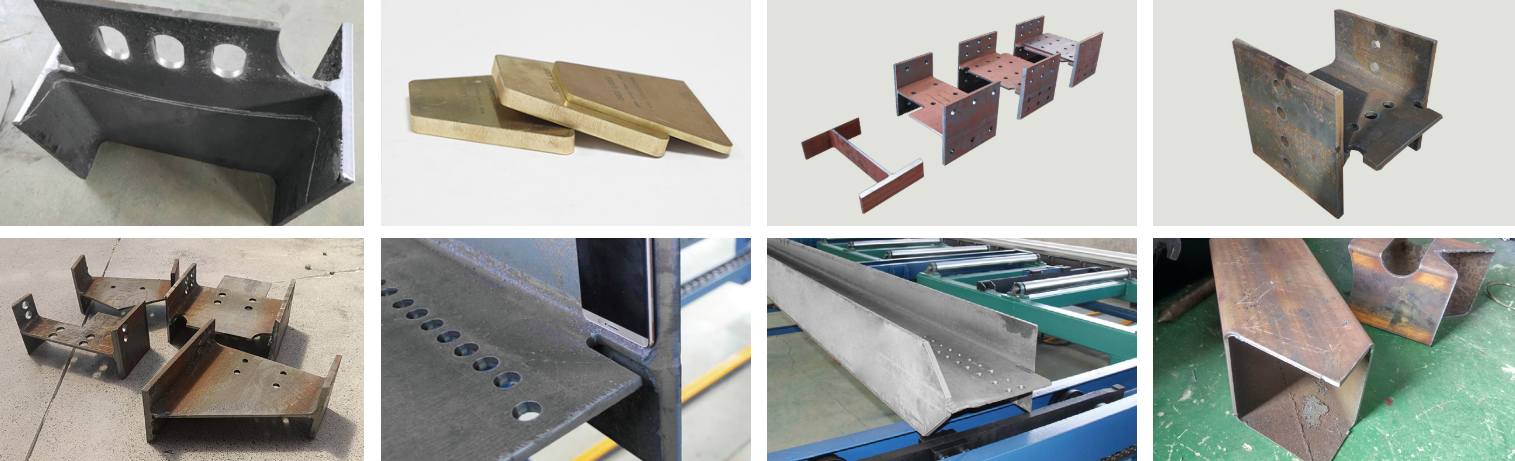

H-beam online measurement, compensation, cutting, opening, marking, cutting, beveling integrated software function;
H-beam special process database :R Angle, groove, wing plate, web cutting process;
Rugged, highly rigid, integrated ACU rotary swing mechanism
