Tube Profile laser Cutting Machine
- This is an expert-level ultra-high-speed fully automatic tube lasercutting machine with powerful cutting capabilities, high stability, high.quality processing, fully automatic loading system..
Product Description

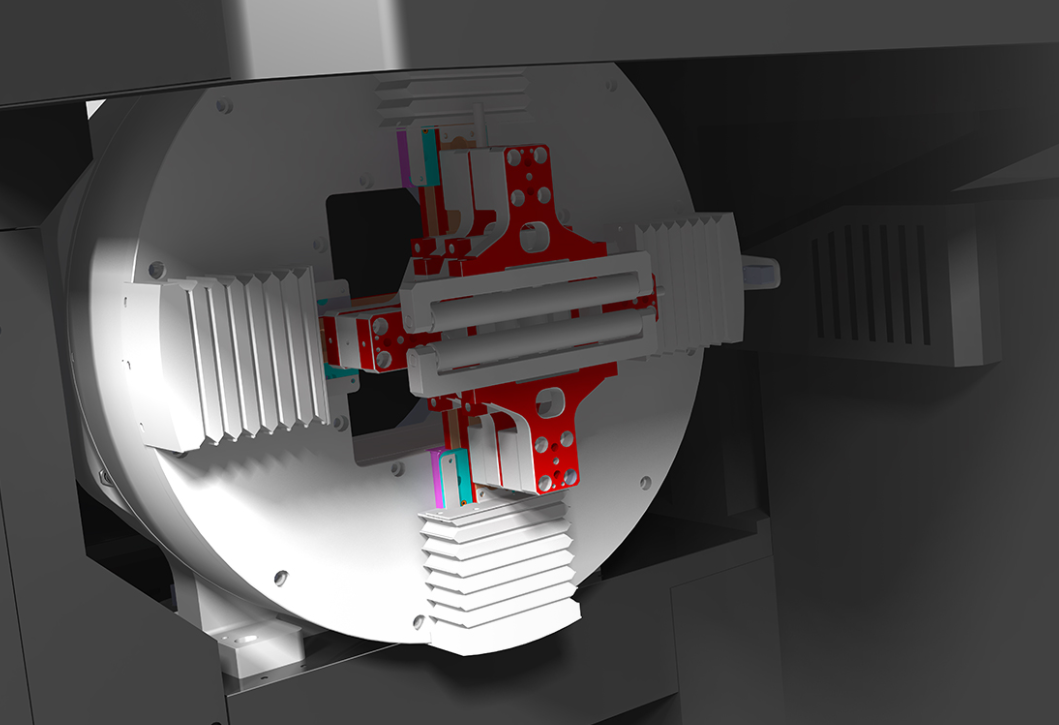

Professional Pneumatic Chuck
Precision pneumatic chuck, four-jaw automatic centering clamping, stable clamping without damaging the workpiece.
Modular Design

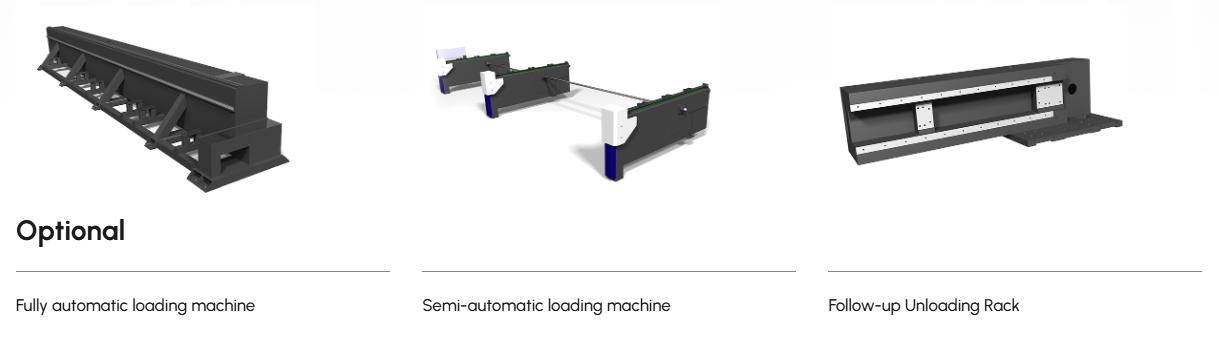

Can be freely matched with fully automatic loading machines, semi-automatic loading machines,bevel cutting heads,and other optional modules to meet diverse usage scenarios
Universal for Various Pipes

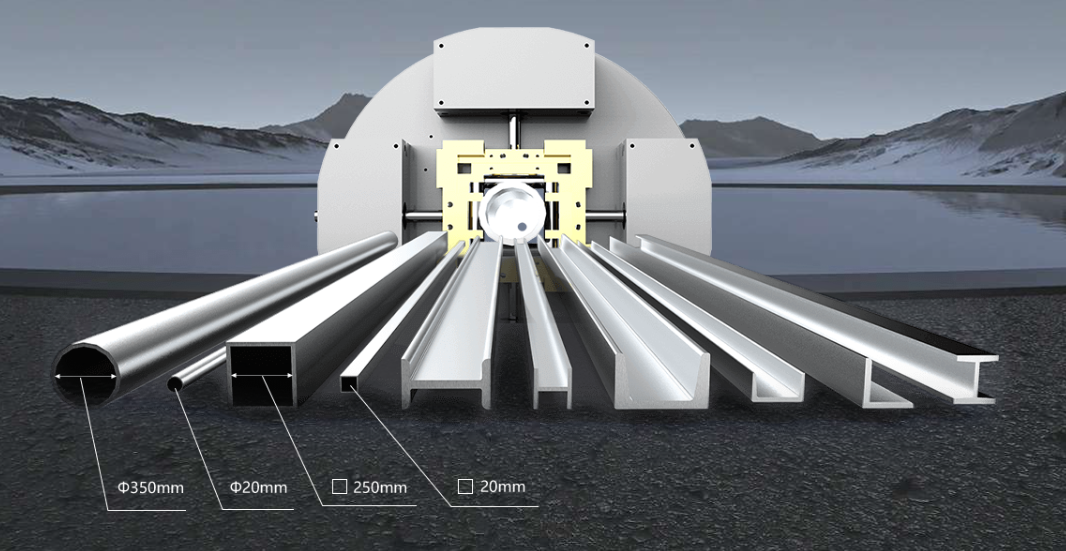

Capable of cutting round pipes, square pipes, rectangular pipes, channel steel, angle steel, I-beams, and other profiled steel.
Technical Parameter
| Product Model | LY0160T | LY0260T | LY0390T | LY0490T | LY05120T |
|---|---|---|---|---|---|
| Working area | 1.5KW-3KW | 3KW-6KW | 6KW-12KW | 6KW-12KW | 6KW-12KW |
| Maximum Idling Speed | 150r/min | 100r/min | 60r/min | 60r/min | 60r/min |
| Processing Pipe Type | Round tube, rectangular tube, elliptical tube, U-shaped tube | ||||
| Maximum Idling Speed | 90m/min | 90m/min | 60m/min | 60m/min | 60m/min |
| Positioning Accuracy | ±0.05mm | ||||
| Repeat Positioning Accuracy | ±0.05mm | ||||
| Chuck Load Bearing | 300KG | 800KG | 1200KG | 1200KG | 1500KG |
| Processing Range | Square tube 10- Square tube 120 | Square tube 20- Square tube 240 | Square tube 20- Square tube 360 | Square tube 20- Square tube 460 | Square tube 20- Square tube 550 |
| Square tube 10- Square tube 120 | Square tube 20- Square tube 240 | Square tube 20- Square tube 360 | Square tube 20- Square tube 460 | Square tube 20- Square tube 550 | |

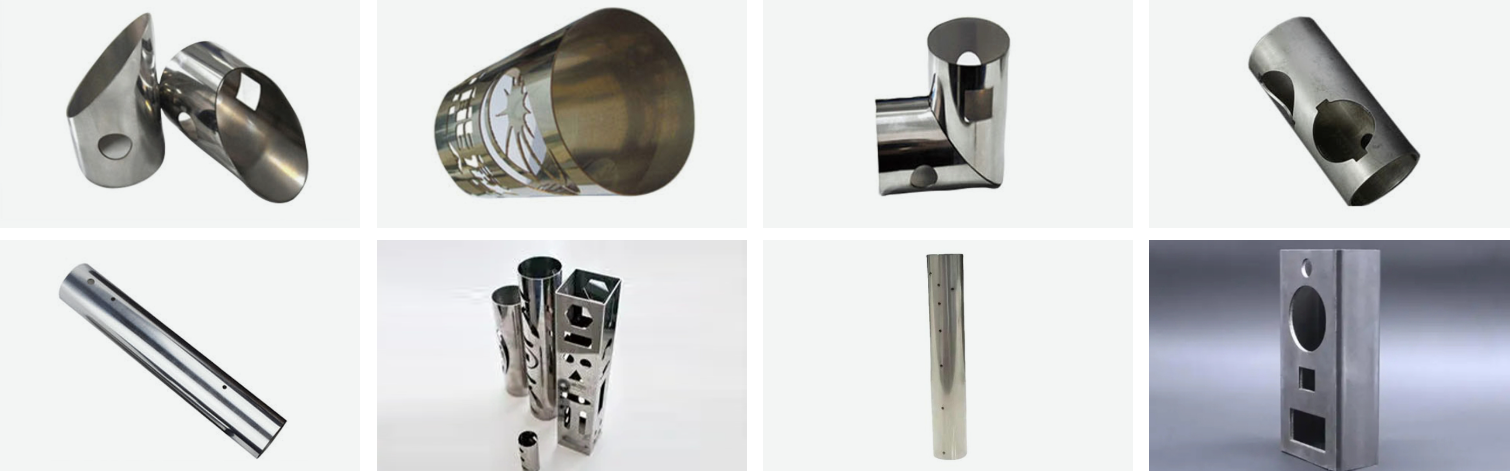

Cutting Sample
