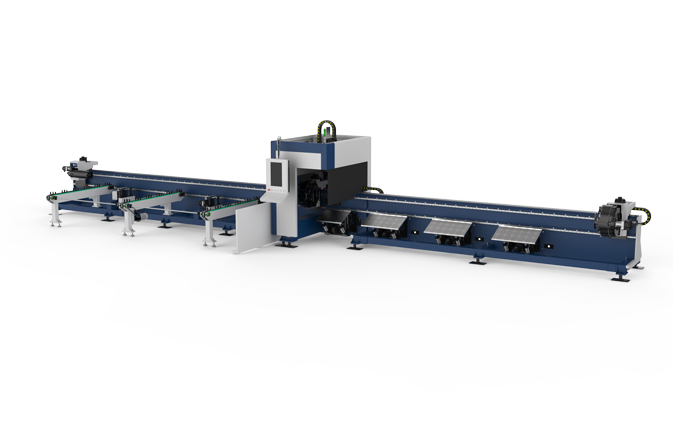

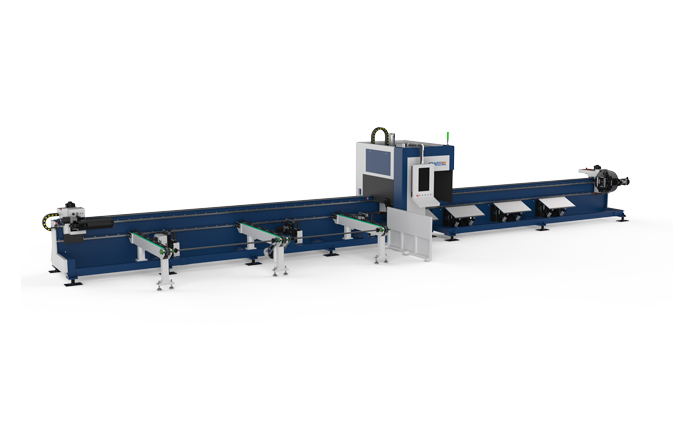

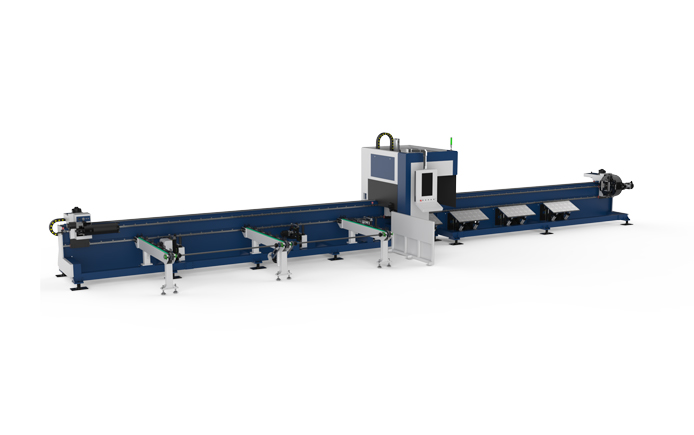

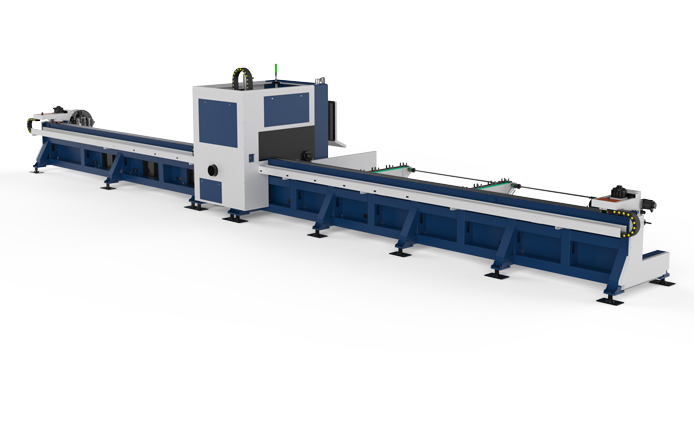

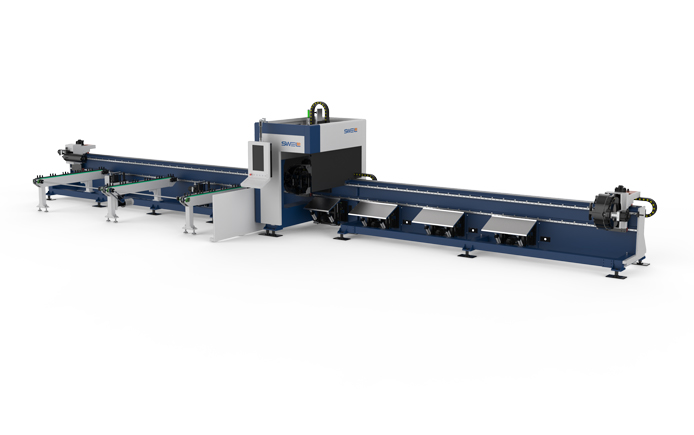

3 Chucks（Side Hanging）Heavy-Load Tube laser Cutting Machine
- The side hanging structure of the product makes loading and unloadingmore convenient and quicker, the chuck can move left and right to trulyachieve ...
Product Description
Whole Pipe Cutting, Zero Waste Processing
The third chuck can clamp and pull the pipe
To achieve the cutting of long pipes
Realize zero waste
Clamping Range is Large, and Wide Cutting Range
The cutting application range is extensive, suitable for various cutting conditions
It supports processing of workpieces up to 12 meters in length
Can process pipe diameters ranging from 20 to 350mm
Follow-up Support System
Equipped with a follow-up material support
It can adjust the lifting height in real time
Prevent the pipe from swinging and sagging
Ensuring cutting accuracy
Automatic Loading and Unloading System
Equipped with an automatic loading and unloading system
High processing efficiency and intelligence
Greatly improve production efficiency and save labor costs
Technical Parameter
| Product Model | LY12036T | |||
|---|---|---|---|---|
| Pipe Length | 3030*1530mm | |||
| Laser Power | 6KW-12KW | |||
| Processing Pipe Type | Round tube | rectangular tube | rectangular tube | U-shaped tube |
| Maximum ratating Speed | 60r/min | |||
| Maximum Idling Speed | 60mm/min | |||
| Positioning Accuracy | ±0.05mm | |||
| Repeat Positioning Accuracy | ±0.05mm | |||
| Chuck Load Bearing | 1200kg | |||
| Working area | Square tube 20-square tube 360 | Round tube 20-round tube 360 | ||

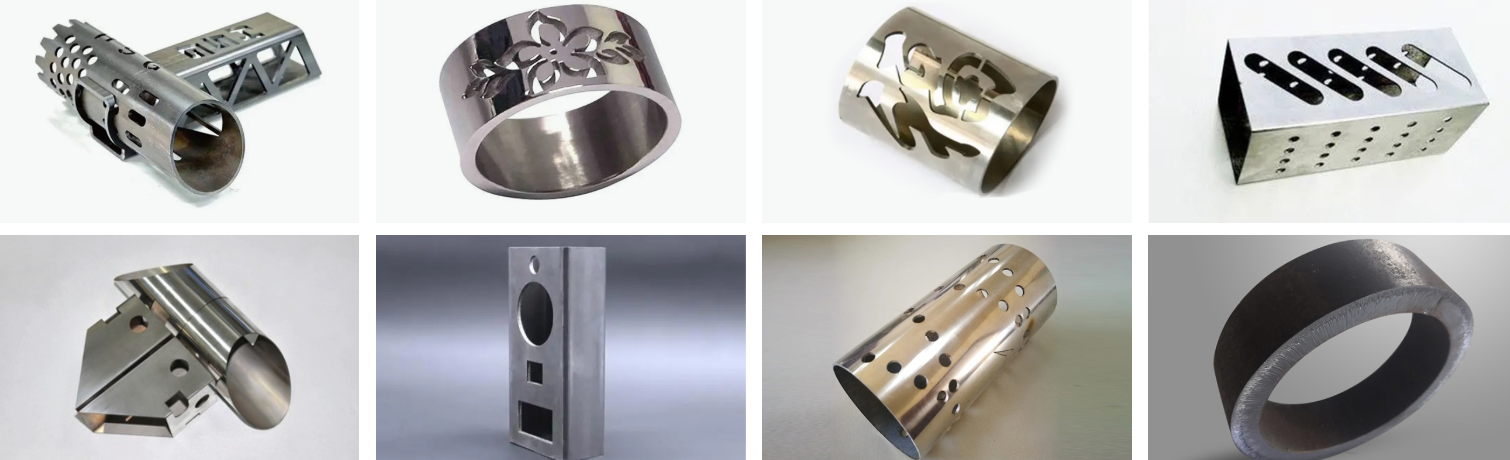

Cutting Sample
